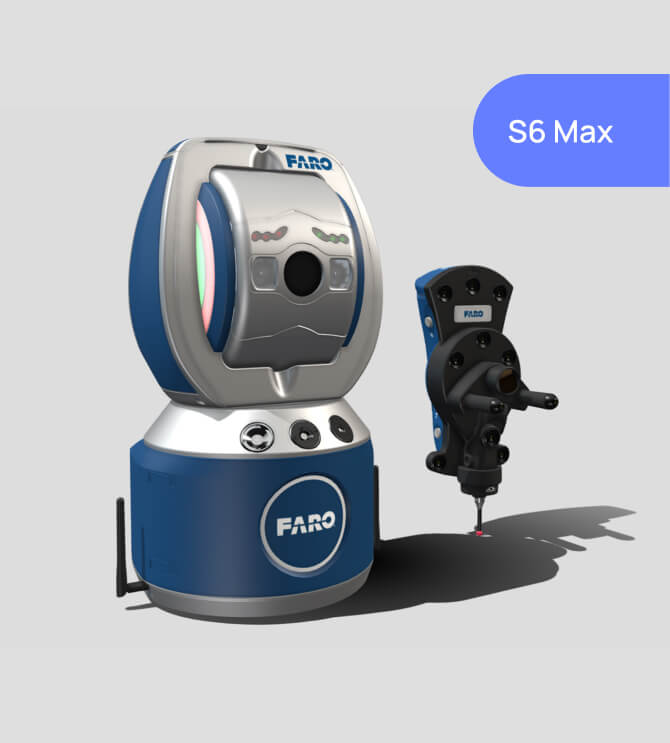

Faro Vantage S6 Max

—

Request

Measuring large parts, molds, assemblies and machines used to be a challenging, time-consuming process and often had to be performed in a special inspection area. Portable FARO Vantage Laser Trackers make on-site measurement easy and fast, reducing inspection cycle times by up to 75%. They measure 3D coordinates by tracking a target that the user moves from one point to another on the object being measured. In seconds, these measurements can be compared against nominal CAD data so teams can either make informed adjustments or move forward with confidence.

New to the VantageS6 Max and VantageE6 Max family of Laser Trackers is more accurate 6DoF probing, which helps speed up inspections and reduce the number of device moves. With the higher accuracy of the Vantage Max, users can probe more points beyond the line of sight and without tooling changes, resulting in a productivity improvement of 20% compared to lower accuracy probes.

Faro Quantum E Max

—

Faro Quantum S Max

—

Faro Focus Premium 350

—

Faro Quantum E Max

—

Faro Quantum S Max

—

Faro Focus Premium 350

—

Description

  • Improve Quality

Complex 3D inspections and automatic reports help users pinpoint defects, while high-accuracy alignment of machinery and robotic systems improves manufacturing quality.

  • Make Informed Decisions

With the information at your team’s fingertips, they’ll be equipped to make smarter decisions faster and stay ahead of any problems.

  • Increase Throughput

Higher production rates and reduced downtime for verification mean greater throughput. Vantage Max now has more accurate 6DoF probing, which helps speed up inspections and reduce the number of device moves.

  • Accelerate Revenue Generation

Installs with production equipment and brings products to market faster.





Brochure
Performance Specifications
Select SMR Range 0 – 80m *1
7/8” and 1.5” SMR Range 0 – 60m
0.5” SMR Range 0 – 30m
Minimum 6DoF Range 2.5m
Maximum 6DoF Range 15m
Angular Accuracy *2 20μm + 5μm/m
Distance Accuracy *3 16μm + 0.8μm/m
Distance Resolution 0.5μm
Probing Accuracy *3  50μm + 5μm/m
6DoF Maximum Roll 360 degrees
6DoF Maximum Pitch and Yaw *4 25 degrees (compounded)
Level Accuracy +/- 2 arcseconds
Data Rate 1000 points per second
Camera Field of View 50 degrees
Laser Emission *4 Class 1 laser product: 630-640nm laser, 0.39 milliwatt max/cw



VantageE6/S6 Max 6Probe
Temperature 0 to 40°C 0 to 40°C
Humidity 0 to 95% non-condensing 0 to 95% non-condensing
Altitude -700 to 9000m -700 to 9000m
Ingress Protection *6 IP52 IP52
Size (W x H x D) 240 x 416 x 240mm 112 x 285 x 140mm (with 50mm tip)
Weight 13.4kg (29.5lbs) 886 grams (with battery & 50mm tip)
AC Power 100-240V, 75W N/A
Battery Power 8 hours continuous operation (2 batteries) 2-4 hours continuous use, 8+ hrs typical
Data Rate 1000 Hz 1000 Hz
Connectivity Ethernet RJ45 supporting gigE or WLAN
(802.11n or earlier)		 FHSS RF Module (ISM band)



 Point to Point Accuracy *2
In-Line Distance Measurments *7
Length 2-5m
(6.6-16.4ft)		 2-10m
(6.6-32.8ft)		 2-35m
(6.6-114.8ft)		 2-80m1
(6.6-262.5ft)
Distance 3m (9.8ft) 8m (26.2ft) 33m (108ft) 78m (255.9ft)
ADM MPE *2 0.018mm
(0.0007in)		 0.022mm
(0.0009in)		 0.042mm
(0.0017in)		 0.078mm
(0.0031in)
ADM Typical 0.009mm
(0.0004in)		 0.011mm
(0.0004in)		 0.021mm
(0.0008in)		 0.039mm
(0.0015in)



Horizontal Scale Bar Measurement 2.3m (7.55ft) SMR *7
Range 2m (6.6ft) 5m (16.4ft) 10m (32.8ft) 35m (144.8ft) 80m1 (262.5ft)
MPE*2 0.044mm
(0.0017in)		 0.064mm
(0.0025in)		 0.099mm
(0.0039in)		 0.276mm
(0.0109in)		 0.594mm
(0.0234in)
Typical 0.022mm
(0.0009in)		 0.032mm
(0.0013in)		 0.049mm
(0.0019in)		 0.138mm
(0.0054in)		 0.297mm
(0.0117in)
Horizontal Scale Bar Measurement 2.3m (7.55ft) 6Probe*7,8

Range 2.5m (8.2ft) 10m (32.8ft)
2σ 0.046mm (0.0018in) 0.073mm (0.0029in)

1. 80m only possible on VantageS6 Max with select targets at 10-35°C (50-95°F) |

2. MPE (Maximum Permissible Error) and all accuracy specs based on ISO 10360-10:2016 verified to 75m |

3. MPE based on ISO 10360-10:2016 reported as radius of the minimum circumscribing sphere with 50mm tip |

4. With latest 6Probe |

5. Product complies with radiation performance standards under the Food, Drug, and Cosmetics Act, International standard IEC60825-1 2001-8, and IEC62471|

6. Per IEC 60529 |

7. With integrated weather station |

8. Measuring with 6Probe in the same orientation on both ends of the scale bar |
