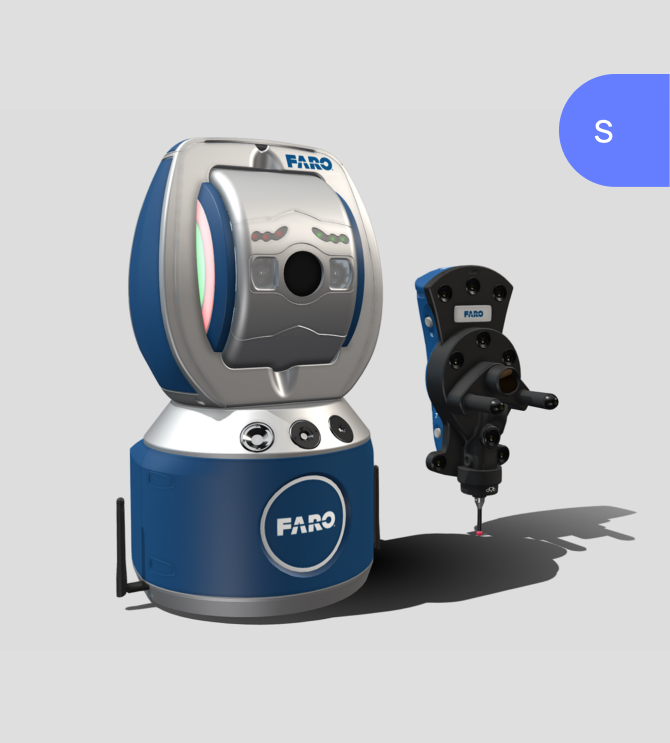

Faro Vantage S

—

Request

Measuring large parts, molds, assemblies and machines used to be a challenging, time-consuming process and often had to be performed in a special inspection area. Portable FARO Vantage Laser Trackers make on-site measurement easy and fast, reducing inspection cycle times by up to 75%. They measure 3D coordinates by tracking a target that the user moves from one point to another on the object being measured. In seconds, these measurements can be compared against nominal CAD data so teams can either make informed adjustments or move forward with confidence.

New to the VantageS6 Max and VantageE6 Max family of Laser Trackers is more accurate 6DoF probing, which helps speed up inspections and reduce the number of device moves. With the higher accuracy of the Vantage Max, users can probe more points beyond the line of sight and without tooling changes, resulting in a productivity improvement of 20% compared to lower accuracy probes.

Faro Quantum S Max

—

Faro Focus Premium 350

—

Faro Vantage S6 Max

—

Faro Vantage E6 Max

—

Faro Quantum S Max

—

Faro Focus Premium 350

—

Faro Vantage S6 Max

—

Faro Vantage E6 Max

—

Description

  • Improve Quality

Complex 3D inspections and automatic reports help users pinpoint defects, while high-accuracy alignment of machinery and robotic systems improves manufacturing quality.

  • Make Informed Decisions

With the information at your team’s fingertips, they’ll be equipped to make smarter decisions faster and stay ahead of any problems.

  • Increase Throughput

Higher production rates and reduced downtime for verification mean greater throughput. Vantage Max now has more accurate 6DoF probing, which helps speed up inspections and reduce the number of device moves.

  • Accelerate Revenue Generation

Installs with production equipment and brings products to market faster.





Brochure
 Working Range
Maximum with FARO 1.5in
green-ring or 1.5in blue-ring SMRs		 80m (262.5ft)
Maximum with 1.5in & 7/8in SMRs 60m (196.9ft)
Maximum with 1/2in SMRs 30m (98.4ft)
Minimum 0m (0ft)
 Rotational Envelope
Horizontal 360° – Infinite rotation
Vertical 130° (+77.9° to -52.1°) – Infinite rotation
 Distance Measurement Performance*1
Data Output Rate 1,000 measurement points per second
Resolution 0.5μm (0.00002in)
Accuracy (MPE) 16μm + 0.8μm/m (0.00063in + 0.0000096in/ft)
Max Radial Acceleration 30m/sec2 (82.0ft/sec2)
Max Radial Velocity > 25m/sec (98.4ft/sec)
Angle Measurement Performance*1
Angular Accuracy (MPE) 20μm + 5μm/m (0.00079in +
0.00006in/ft)
Precision Level Accuracy ± 2 arcseconds
Tracking Performance
Max Angular Acceleration 860°/sec2 (15 rads/sec2)
Max Angular Velocity 180°/sec (π rads/sec)
Stereo Color Cameras
Field of View 50°
Resolution 1920 x 1080p @ 15 fps
Dimensions
Size 240(W) x 416(H) mm [9.4(W) x 16.4(H) in]
Weight 13.4kg (29.5lb)
Hardware Specifications & Environmental
Class 1 Laser Product 630-640 nm laser, 0.39 milliwatt max/cw
Power Supply Voltage 24V
Power Consumption 75W
Battery Life 8 hours continuous operation (2 batteries), hot swappable
Altitude -700 to 9,000m (-2,297 to 29,527ft)*3
Humidity 0 to 95% non-condensing
Operating Temperature -15°C to 50°C (5°F to 122°F)
Dust and water resistant (IEC 60529) IP52
Certifications – NRTL listed, MET-C listed
– EU – RoHS2
Complies With – Ingress Protection IP52 per IEC 60529
– 47 CFR, Ch. 1, Part 15, Subpart B
– ICES-003, Issue 6, 2016
– UL 61010-1, CSA C22.2 No. 61010-1, EN 61010-1, IEC 61010-1
– Laser and LED Safety IEC 60825 and IEC 62471
– IEC 60068-2-6, IEC 60068-2-64, and IEC-60068-2-27
(shock and vibration)
– EU/EMC Directive 2014/30/EU, EN 61326:2013, IEC 61326:2012
Connectivity
Ethernet RJ45 port supporting GigE
WiFi 802.11n (and earlier)
Software Compatibility – FARO CAM2
– BuildIT
– FARO RemoteControls Workflow App
– Third-Party Software Plug-ins
– Software Development Kit (SDK)

 Point to Point Accuracy *1
In-Line Distance Measurments *3
Length 2-5m
(6.6-16.4ft)		 2-10m
(6.6-32.8ft)		 2-35m
(6.6-114.8ft)		 2-80m*4
(6.6-262.5ft)
Distance 3m (9.8ft) 8m (26.2ft) 33m (108ft) 78m (255.9ft)
ADM MPE *1 0.018mm
(0.0007in)		 0.022mm
(0.0009in)		 0.042mm
(0.0017in)		 0.078mm
(0.0031in)
ADM Typical 0.009mm
(0.0004in)		 0.011mm
(0.0004in)		 0.021mm
(0.0008in)		 0.039mm
(0.0015in)



Horizontal Scale Bar Measurement 2.3m (7.55ft) SMR *3
Range 2m (6.6ft) 5m (16.4ft) 10m (32.8ft) 35m (144.8ft) 80m*4 (262.5ft)
ADM MPE*1 0.044mm
(0.0017in)		 0.064mm
(0.0025in)		 0.099mm
(0.0039in)		 0.276mm
(0.0109in)		 0.594mm
(0.0234in)
ADM Typical 0.022mm
(0.0009in)		 0.032mm
(0.0013in)		 0.049mm
(0.0019in)		 0.138mm
(0.0054in)		 0.297mm
(0.0117in)

1. MPE (Maximum Permissible Error) and all accuracy specs based on ISO 10360-10:2016 verified to 75m |

2. Product complies with radiation performance standards under the Food, Drug, and Cosmetics Act and international standard IEC 60825-1 2001-08 |

3. With integrated weather station |

4. Lengths and distances of over 35m are not applicable to VantageE |
