Faro Quantum E Max

—

Request

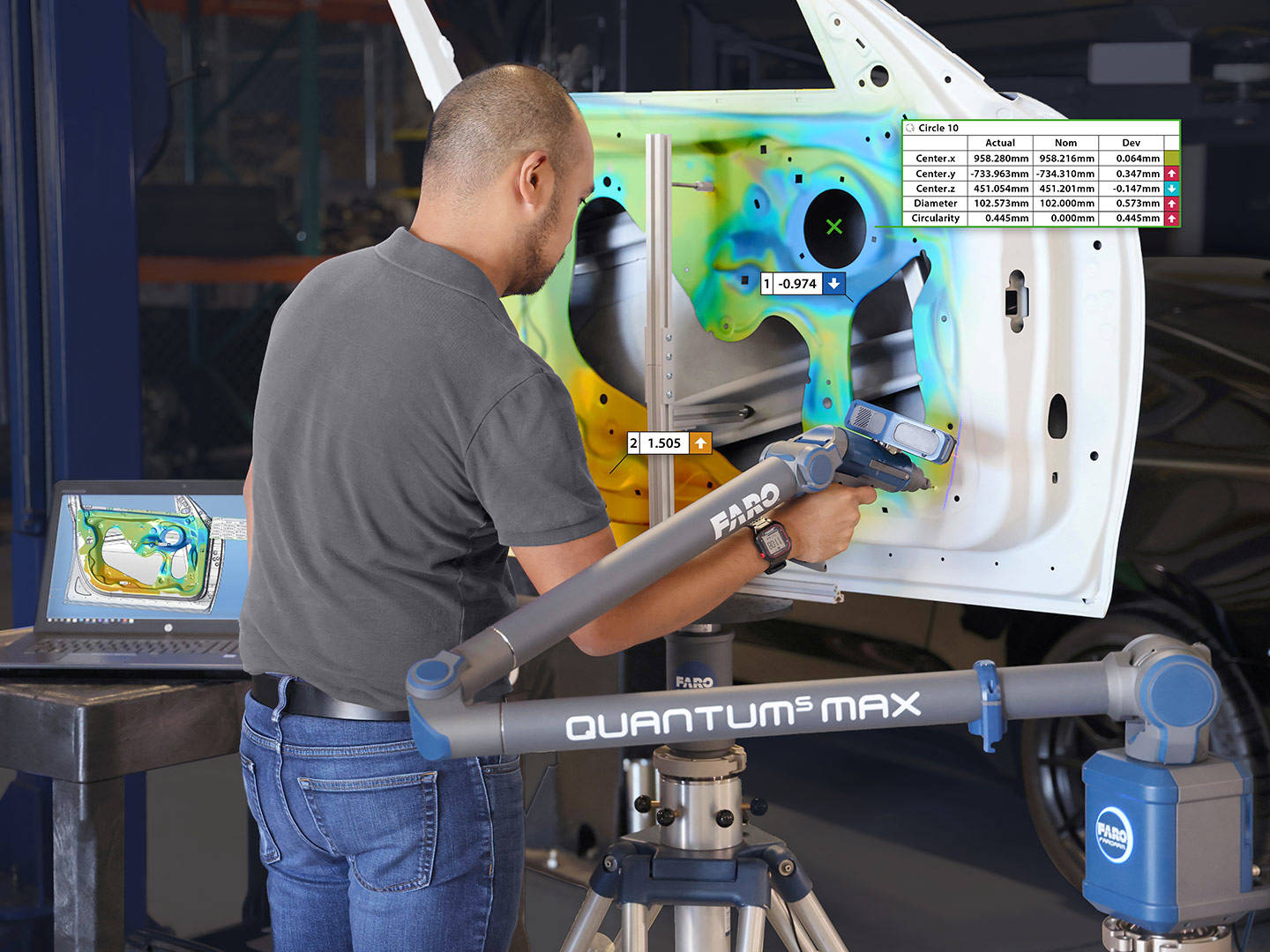

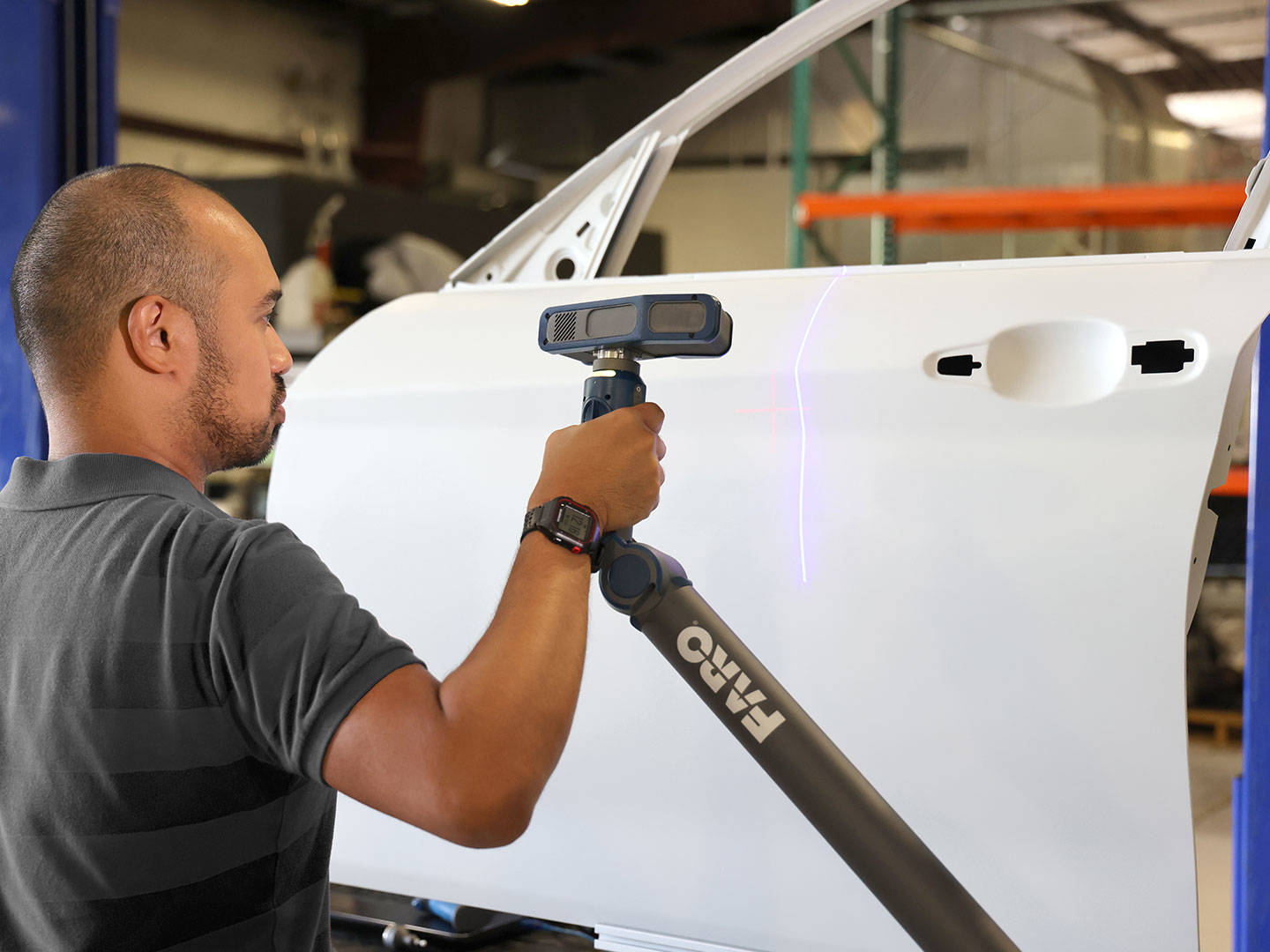

Sometimes a part or tool is so complex, you can’t use contact probes to capture all of its measurements. But lasers do the job with exceptional speed and accuracy. In these cases, leading manufacturers rely on FARO Quantum Max ScanArms, which combine the measurement capabilities of a Quantum Max FaroArm® portable coordinate measuring machine (CMM) with the non-contact functionality of a laser line probe. The Quantum Max also offers a variety of LLPs that optimize accuracy, speed or a blend of both, depending on project need. Whichever LLP you choose, 3D ScanArms capture precise measurements in nearly any environment, from the factory floor to the field.

Description

  • Scan More, Scan Better, Scan Faster

Increase your productivity without the need to compromise between speed and accuracy.

  • Improve Quality

Complex 3D inspections and automatic reports help users pinpoint defects.

  • Capture Details

The FARO laser ScanArm captures extreme measurement detail on complicated parts and objects.

  • Enhance Yield

Faster troubleshooting and root-cause analysis help increase overall yield.

  • Make Informed Decisions

Faster troubleshooting and root-cause analysis help increase overall yield.

FaroArm Accuracy – Contact Measurement1 (FaroArm)
Quantum Max E Model
7-Axis
2.0m (6.6ft) 0.040 mm 0.0016 in
2.5m (8.2ft) 0.046 mm 0.0018 in
3.0m (9.8ft) 0.066 mm 0.0026 in
3.5m (11.5ft) 0.082 mm 0.0032 in
4.0m (13.1ft) 0.100 mm 0.0039 in
Quantum Max Max Reach / Weight
6-Axis 7-Axis
2.0m (6.6ft) 2.58 m
8.5 ft		 9.5 kg
21.1 lbs		 2.60 m
8.5 ft		 9.6 kg
21.3 lbs
2.5m (8.2ft) 3.08 m
10.1 ft		 9.6 kg
21.2 lbs		 3.10 m
10.2 ft		 9.7 kg
21.4 lbs
3.0m (9.8ft) 3.50 m
11.5 ft		 9.7 kg
21.4 lbs		 3.52 m
11.5 ft		 9.8 kg
21.6 lbs
3.5m (11.5ft) 4.08 m
13.4 ft		 9.9 kg
21.8 lbs		 4.10 m
13.5 ft		 10.0 kg
22.0 lbs
4.0m (13.1ft) 4.58 m
15.0 ft		 10.1 kg
22.3 lbs		 4.60 m
15.1 ft		 10.2 kg
22.5 lbs



Hardware Specifications
FaroArm
Operating Temperature 10C – 40C (50F – 104F)
Operating Humidity 95%, Non-Condensing
Power Supply 100-240 VAC, 47/63 Hz
8-Axis
Max Load Capacity 100kg (220 lbs)
Standard Plate Diameter 250mm (9.8in)
Weight 4.3kg (9.5 lbs)
Laser Line Probe xR xP xS
Accuracy 10μm (0.0004in) 15μm (0.0006in) 25μm (0.001in)
Max Scan Width 95mm (3.7in) 150mm (5.9in) 250mm (9.8in)
Mid Scan Width 80mm (3.1in) 110mm (4.3in) 185mm (7.3in)
Min Scan Width 60mm (2.4in) 80mm (3.1in) 120mm (4.7in)
Stand-off 75mm (3.0in) 105mm (4.1in) 155mm (6.1in)
Depth of Field 60mm (2.4in) 110mm (4.3in) 205mm (8.1in)
Min Point Spacing 15μm (0.0006in) 20μm (0.0008in) 30μm (0.0012in)
Weight 399.1g 369.7g 434.3g
Max Points Per Line 4000
Max Scan Rate 600 Hz
Point Acquisition Rate 1,200,000 points per second
Laser Type 450nm/635nm, Class 2



ScanArm System Accuracy – Non-Contact Measurement2
Quantum Max E Model
FAROBlu Max xR xP xS
2.0m (6.6ft) 0.042 mm 0.0017 in 0.053 mm 0.0021 in 0.060 mm 0.0024 in
2.5m (8.2ft) 0.048 mm 0.0019 in 0.059 mm 0.0023 in 0.065 mm 0.0026 in
3.0m (9.8ft) 0.056 mm 0.0022 in 0.067 mm 0.0026 in 0.077 mm 0.0030 in
3.5m (11.5ft) 0.076 mm 0.0030 in 0.085 mm 0.0033 in 0.095 mm 0.0037 in
4.0m (13.1ft) 0.095 mm 0.0037 in 0.104 mm 0.0041 in 0.112 mm 0.0044 in

All values represent MPE (Maximum Permissible Error)
1 Contact Measurement (FaroArm) : In Accordance with ISO 10360-12; defined as EUNI (Unilateral Error) – Distance error between two points comparing measured versus nominal. Values are +/-

2 Non-Contact Measurement (ScanArm and ScanArm + 8-Axis): Based on ISO 10360-8 Annex D; defined as LDIA (Sphere Location Diameter Error) – Diameter of the spherical zone containing the centers of a sphere measure from multiple orientations. Values are absolute
