Overhead 3D safety adapter

$325.00

excl. 20% VAT

Add to cart

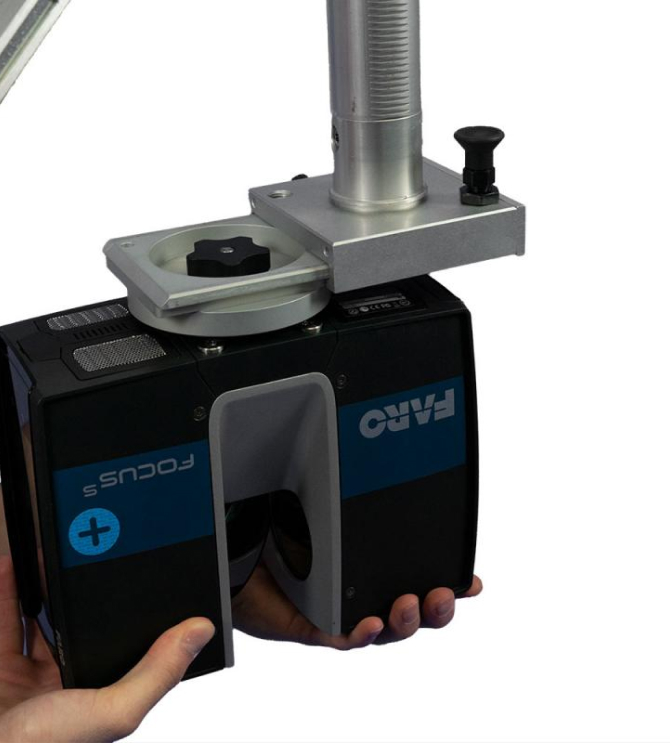

Carry out your laser scanning project more flexible and safer. Scan under the earth’s surface, too. With the adapter for overhead scanning, you can attach leading laser scanners easily and quickly to your tripod – and disassemble it as quickly again. For that purpose, the adapter is screwed on the tripod and scanner without much effort. Then, the laser scanner can quickly and easily be put in the adapter and clamped so that a safe scanning overhead is possible. The best protection for your valuable measuring instruments!
Developed and produced in Germany.

Description

Designated use

  • safe scanning overhead

Product characteristics

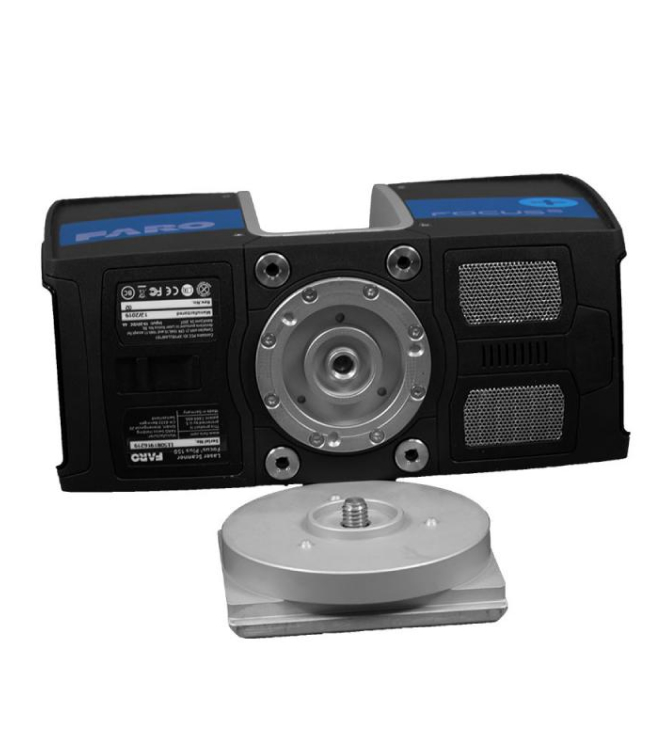

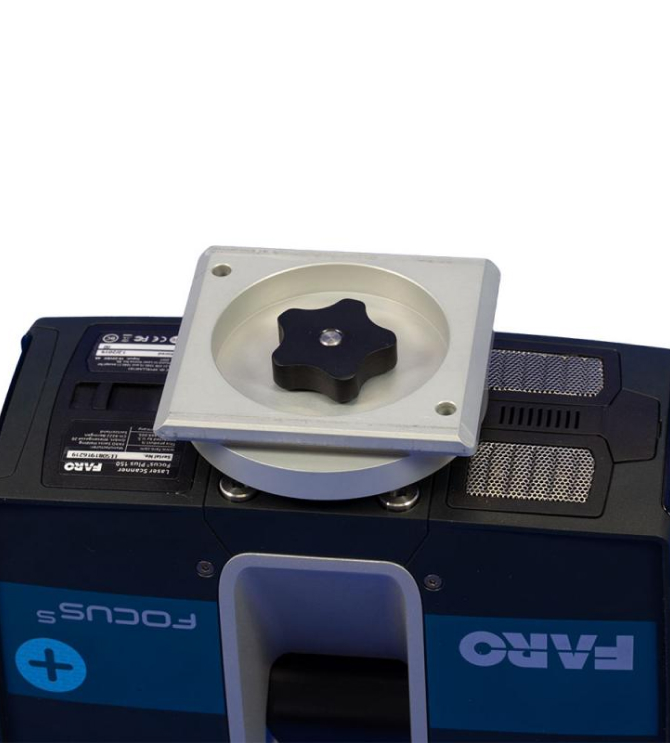

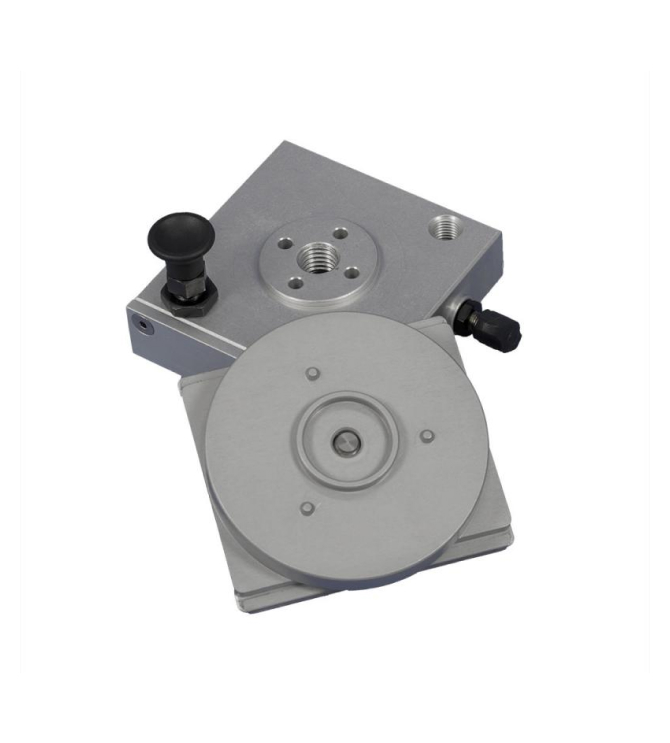

  • One part of the adapter for overhead scanning is screwed on the scanner’s original base plate.
  • The other part of the adapter is screwed on the tripod with a 5/8″ connection.

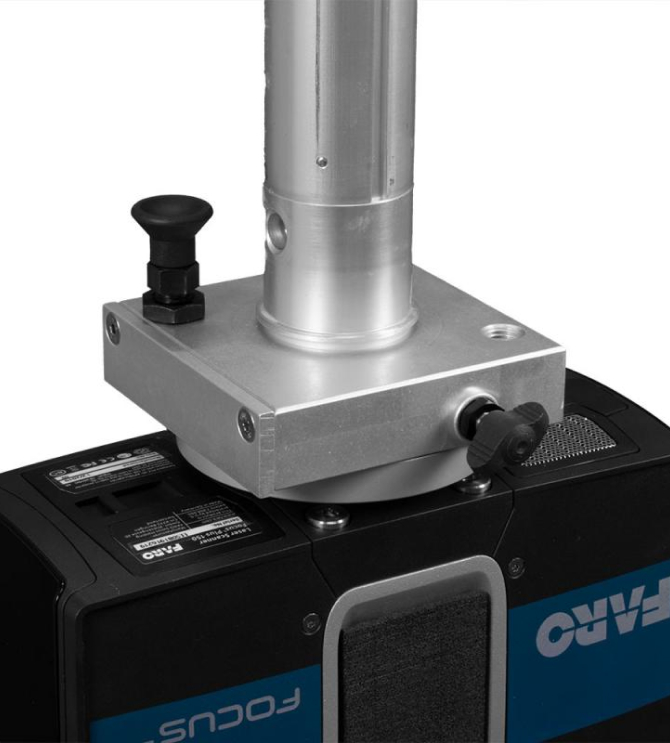

  • The part of the adapter with the scanner can easily be put in the complement fixed at the tripod and secured.
  • available with 5/8″ female and male thread
  • dimensions: 10 x 10 x 10 cm (3.94 x 3.94 x 3.94 in)
  • weight: 1kg

Compatible laser scanners

  • FARO Focus3D 120, FARO Focus3D X 130 and Focus3D X 330
  • Trimble TX5
  • Z+F IMAGER 5006 series (5006i, 5006h)
  • Z+F IMAGER 5010 series (5010C, 5010X)
  • Z+F IMAGER 5016
  • Leica HDS 7000
  • Leica HDS 6200
  • Leica HDS 6100
  • Leica HDS 6000
  • Leica ScanStation P50
  • Leica ScanStation P40
  • Leica ScanStation P30
  • Leica ScanStation P20
  • Leica ScanStation P16

Delivery contents

  • 1 adapter for overhead scanning, optionally with female and male thread
