Compact tripod dolly

Description

Designated use:

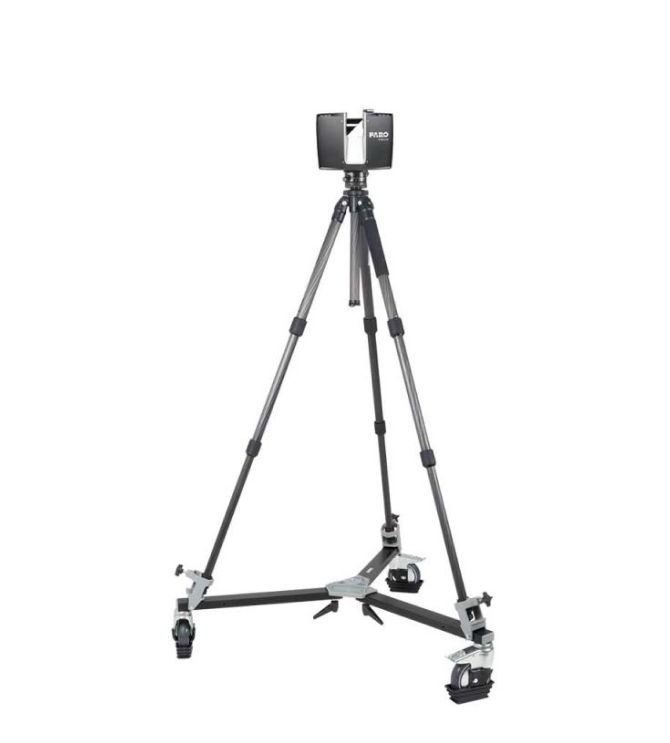

• transport of the laser scanner and of the tripod between the scan positions

Product characteristics:

• material: aluminum
• weight: 8kg
• diameter: 1120mm (44.09 in)
• height: 210mm (8.27 in)
• max. load capacity: 60kg

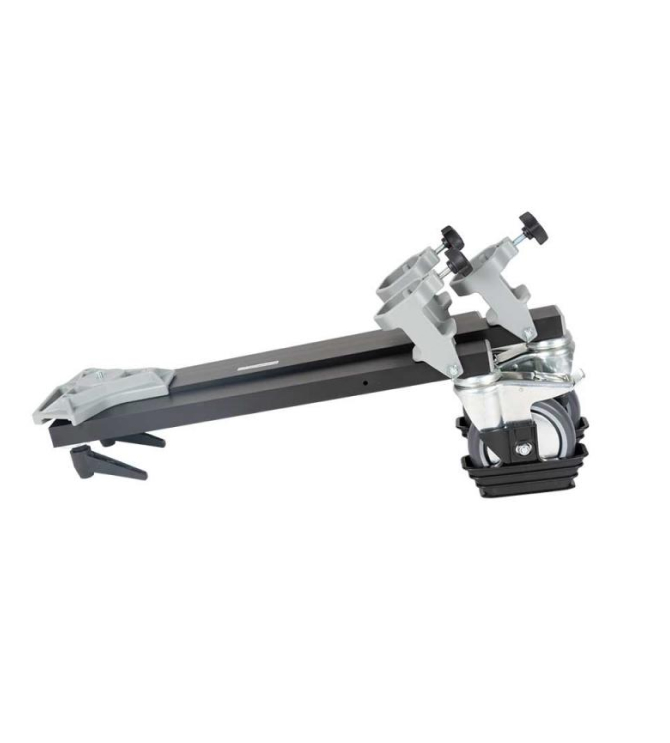

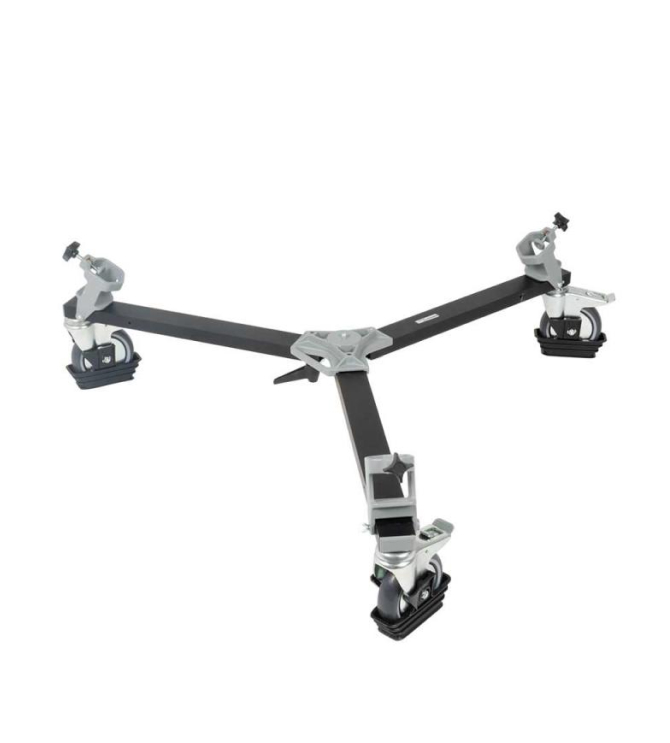

• radial form with robust construction
• distance between the bearing surfaces for tripod feet: 840mm (33.07 in)
• The diameter of the feet may be max. 5cm (1.97 in)

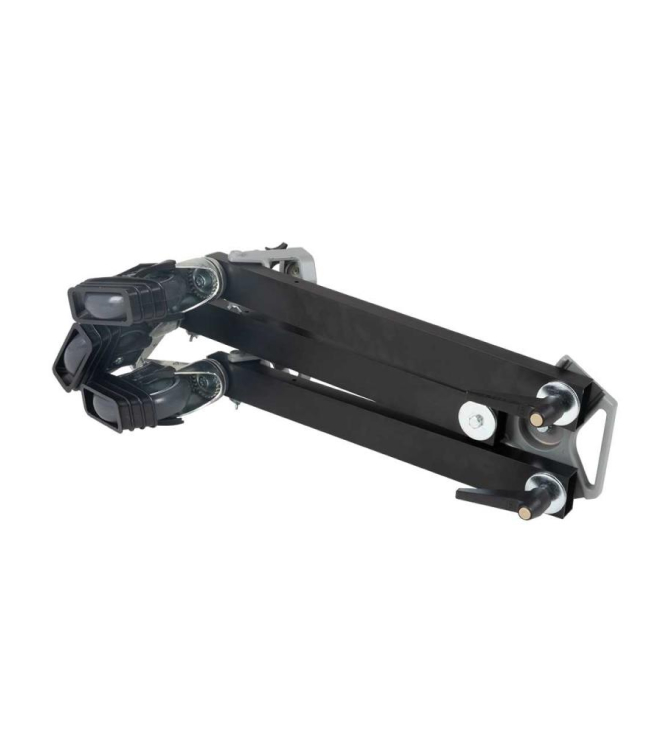

• easily collapsible for safe transport
• pack size: 660 x 200 x 310mm (25.98 x 7.87 x 12.20 in)

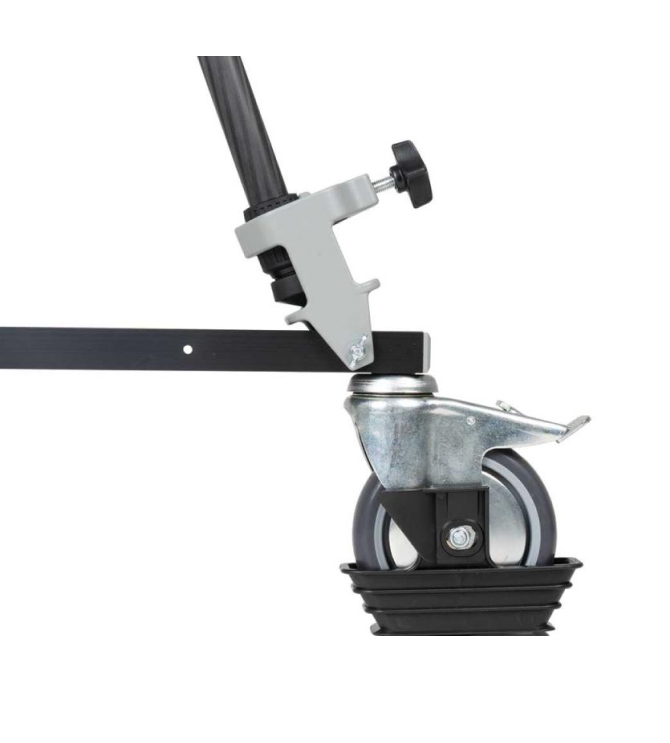

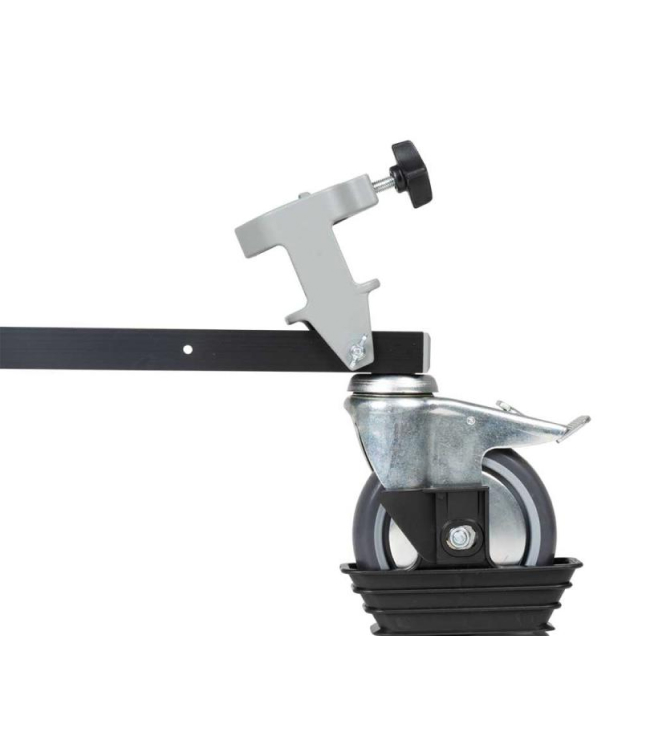

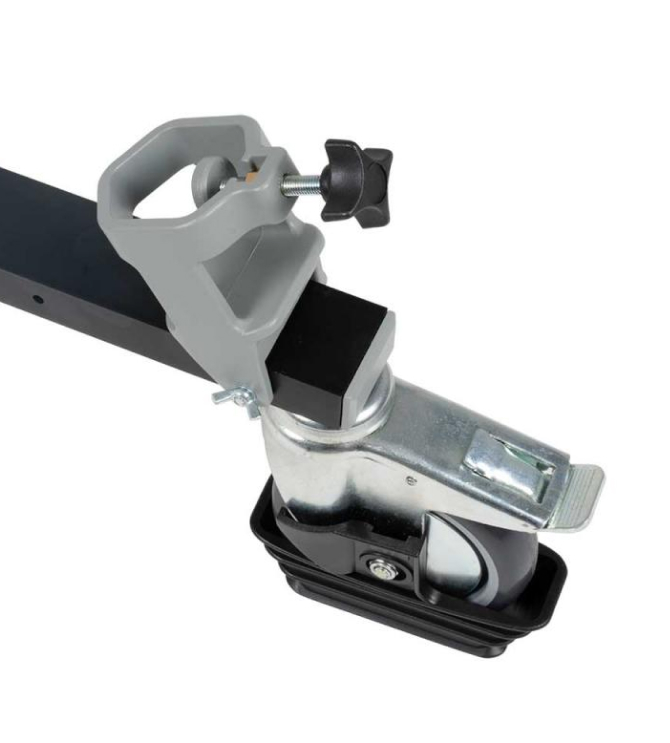

• The tripod is positioned on the bearing surfaces and fixed by means of locking screws. Thus, the tripod dolly can be used universally for all tripods.
• big wheels (Ø 125mm (4.92 in)) for optimum handling

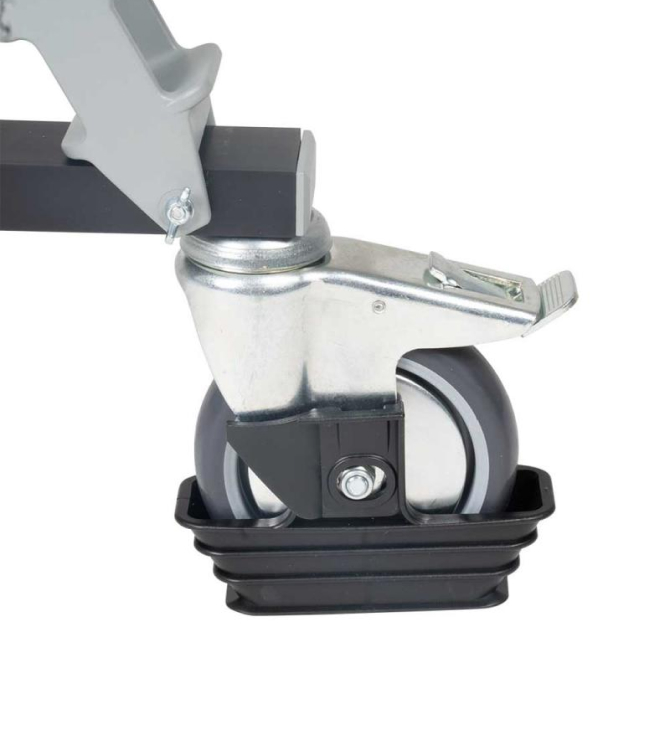

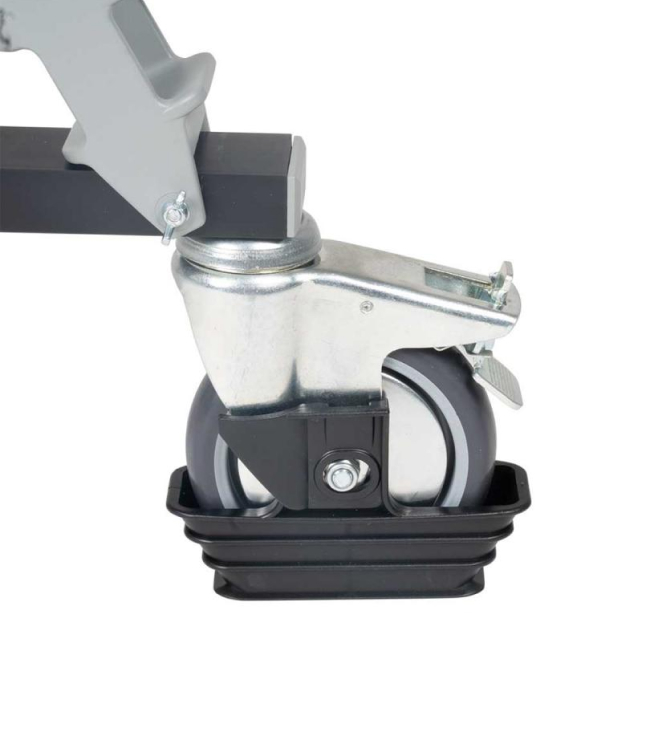

• All wheels can be locked by means of a hand gear. Thus, safe footing during scanning is ensured.

Compatible tripods:

• universally usable, suited for all carbon and aluminum tripods
• not suited for overhead scanning applications which require to lower the scanner below ground

Delivery contents:

• 1 laser scanner tripod dolly
