2-way telescope tripod with 3D safety adapter for Faro Focus S and M, Focus Premium & Core

Description

Designated use:

• scanner usable over several heights . without assembly, disassembly and modification
• enlargement of the possible scanner positions
• safe overhead scanning

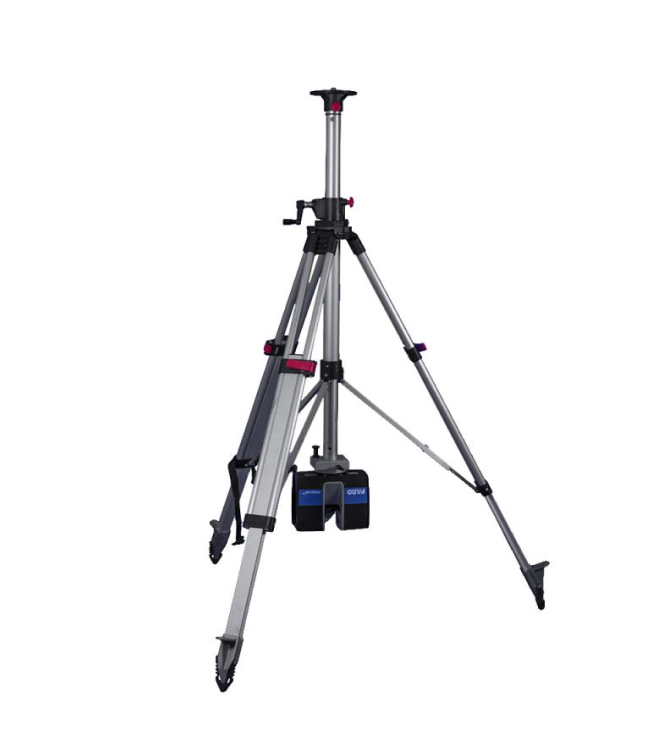

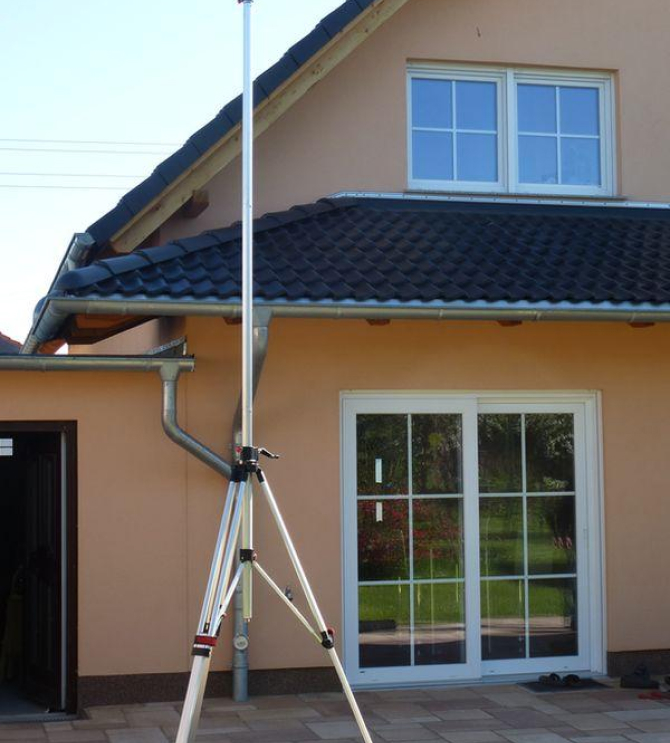

Product characteristics – 2-way telescope tripod:

• tripod: 5/8 inch connection; adapter for 3/8 inch connection is included in the delivery
• indirect crank drive with enhanced gear unit
• The crank drive can be operated by means of a hand crank or a screwdriver.
• anti-twist geared column
• additional leg braces for more stability
• solid and quick locking mechanism
• spirit level
• set of shoes for tripod can be used on various surfaces

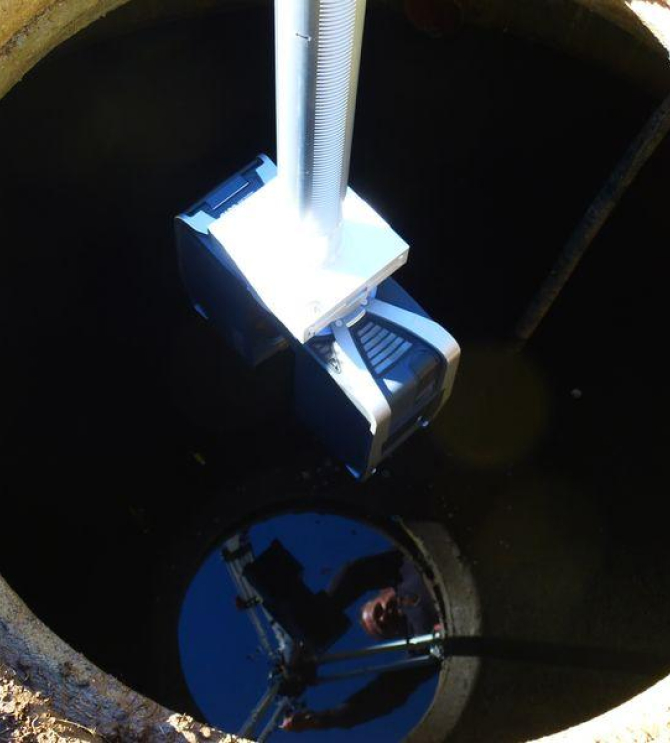

• minimum effective depth: approx. -4.50 m (177.2 in) underground
• maximum useful height: approx. 4.00 m (157.5 in)
• transport length: approx. 1.30m (51.2 in)
• weight: approx. 8,5 kg
• flat support plate with ø 110 mm
• During long-term usage, the scanner’s weight should not be higher than 20kg.
• 4 prolongation tubes (each 1m (39.4 in)) in a robust transport case included
• suited for all scanners with 5/8″ and 3/8″ connection (while scanning upright)

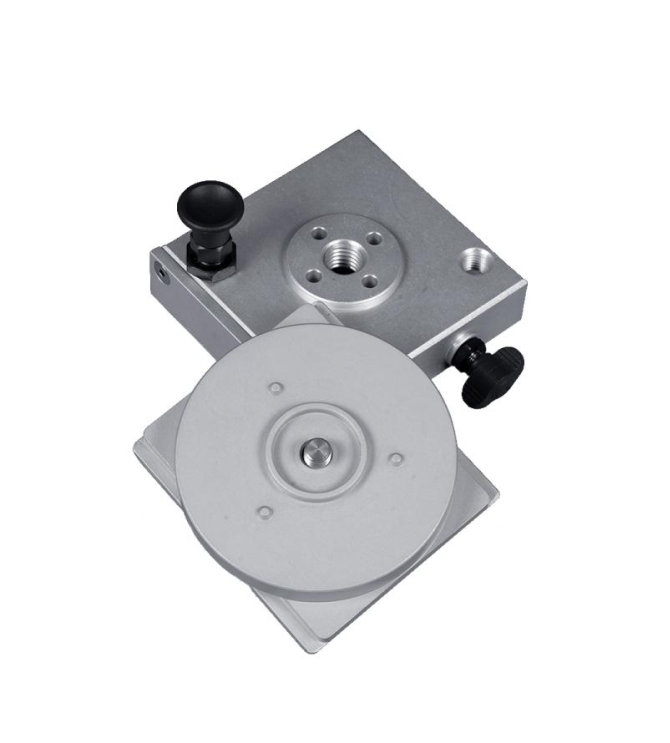

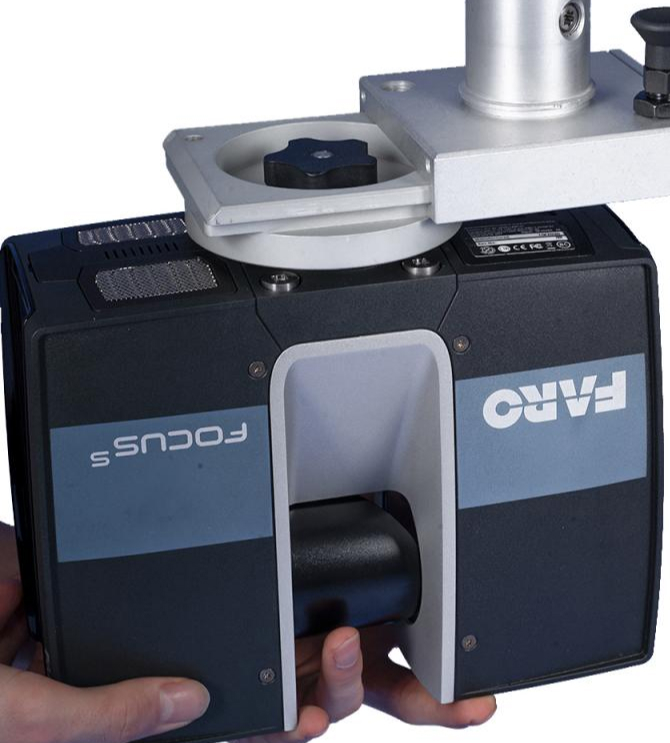

Product characteristics – 3D safety adapter:

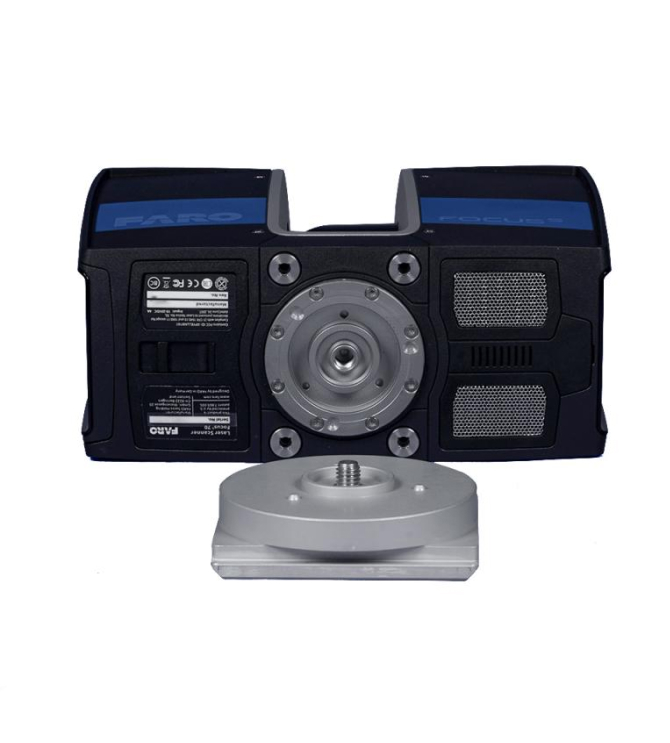

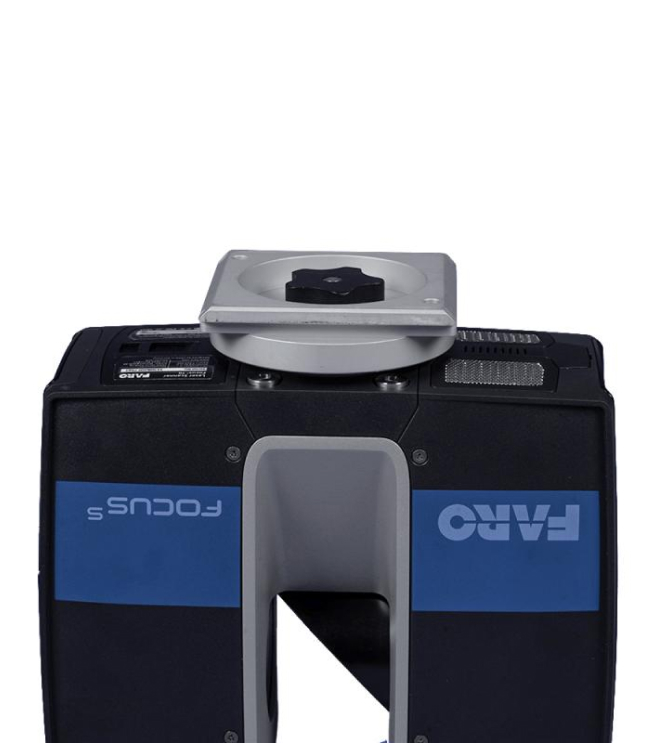

• The plate of the adapter for overhead scanning is firmly screwed on the scanner’s original base plate.

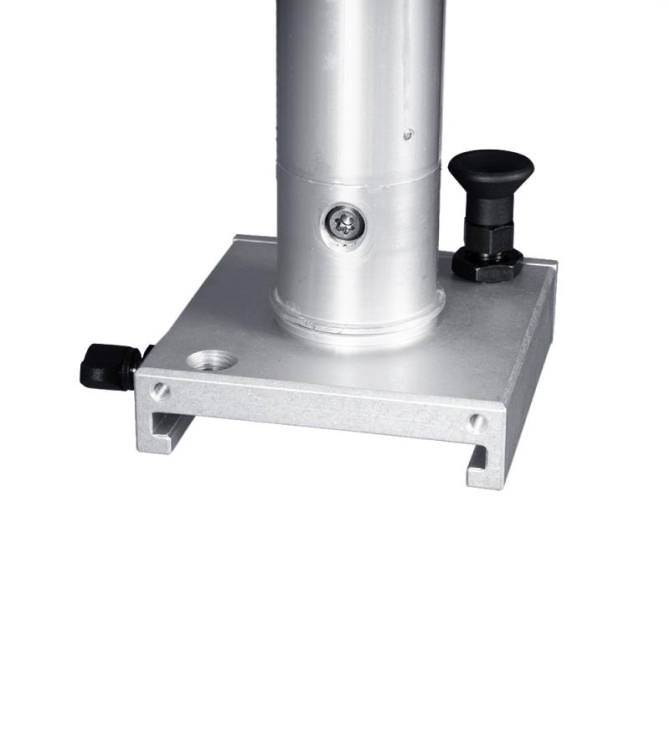

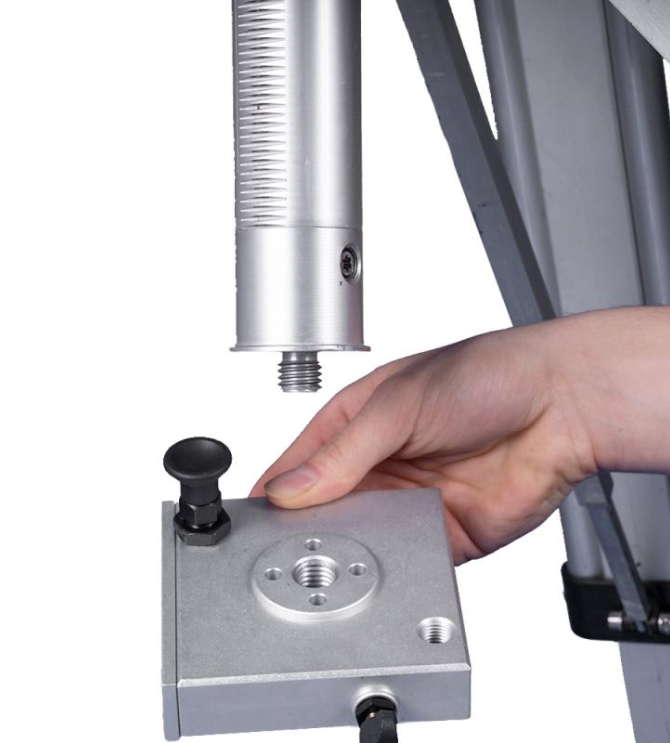

• The slot of the adapter is screwed on the tripod with a 5/8″ connection.

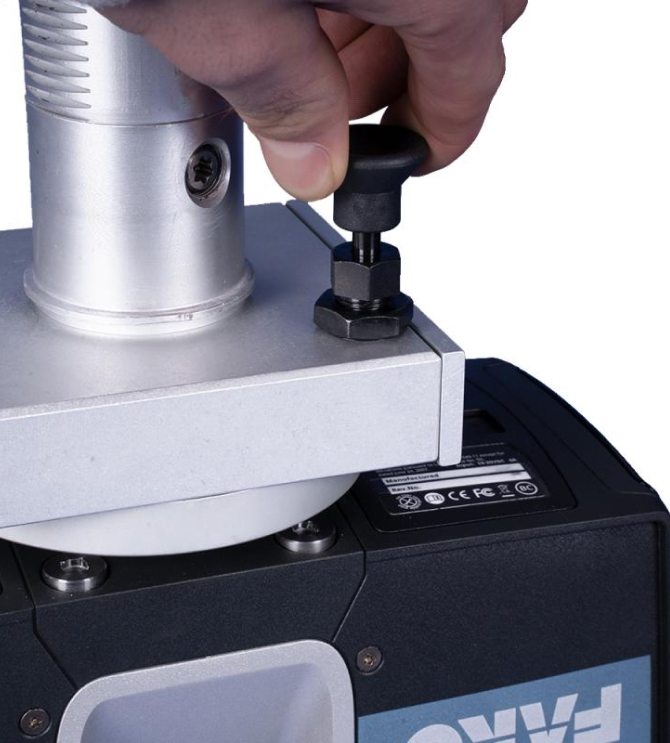

• The scanner with adapter plate can easily be put in the complement fixed at the tripod and secured.
• 5/8″ female thread
• weight: 1 kg
• dimensions: 10cm x 10cm x 10cm (3.94 in x 3.94 in x 3.94 in)

Compatible laser scanners:

• FARO Focus Premium
• FARO Focus Core
• FARO Focus S70
• FARO Focus S150
• FARO Focus S350
• FARO Focus M70

Delivery contents:

• 1 aluminum telescope tripod with 5/8 inch
• 4 prolongation tubes in a robust transport case
• 1 crank for manual operation
• 1 bit for comfortable handling of the tripod by means of a screwdriver
• special screwdriver for securing the single tube
• 1 3/8 inch adapter
• 1 3D safety adapter for overhead scanning

Optional delivery contents:

• tripod dolly
• prolongation tube
• screwdriver
